Automated gold caster utilizing vibration to ensure dense, porosity-free jewelry pieces.
| Model | Max Temp. | Max Power / Electrical Connection | Crucible Volume | Flask Size (ø x H) | Vibration Technology |
|---|---|---|---|---|---|
| VC 400 | 1400°C | 3.5 kW 230 V or 4.5 kW 3 x 400 V | 170 ccm = 2.5 kg Au 18 ct | 130 x 240 mm | - |
| VC 450 | 1400°C | 4.5 kW 3 x 220 V | 170 ccm = 2.5 kg Au 18 ct* | 130 x 240 mm | - |
| VC 460 V | 1400°C | 4.5 kW 3 x 220 V | 170 ccm = 2.5 kg Au 18 ct / 1.5 kg Cu* | 130 x 240 mm Optional: 160 x 400 mm |
Standard |
| VC 480 V | 1600°C | 8 kW 3 x 400 V | 170 ccm = 2.5 kg Au 18 ct* Optional: 245 ccm = 3.6 kg Au 18 ct* |
130 x 240 mm Optional: 160 x 400 mm |
Standard |
| VC 490 V | 1400°C | 8 kW 3 x 400 V | 170 ccm = up to 2.5 kg 18k Au / 1.5 kg Cu Optional: 245 ccm = up to 3.6 kg 18k Au |
130 x 240 mm | Standard |
| VC 500 | 1600°C | 10 kW 3 x 400 V / 3 x 208 V | 245 ccm = 3.6 kg Au 18 ct* | 130 x 240 mm | - |
| VC 650 V | 1700°C | 12 kW 3 x 400 V | 245 ccm = 3.6 kg Au 18 ct* | 160 x 400 mm | Standard |
| VC 680 V | 1700°C | 20 kW 3 x 400 V | 1.5 l = 4 kg Al / 12 kg Cu / 12 kg steel* | 250 x 500 mm | Standard |
| VC 1000 | 1500°C | 25 kW / 3 x 400 V / 40 A, 50 Hz or 60 Hz | 1500 ccm = 15 kg Ag, 4 kg Al | 250 x 500 mm | Available in V-version |
| VC 25000 | 1850°C | 60 kW (3 x 400 V) | 25 l = 65 kg Al / 200 kg Cu* | 600 x 800 mm | - |

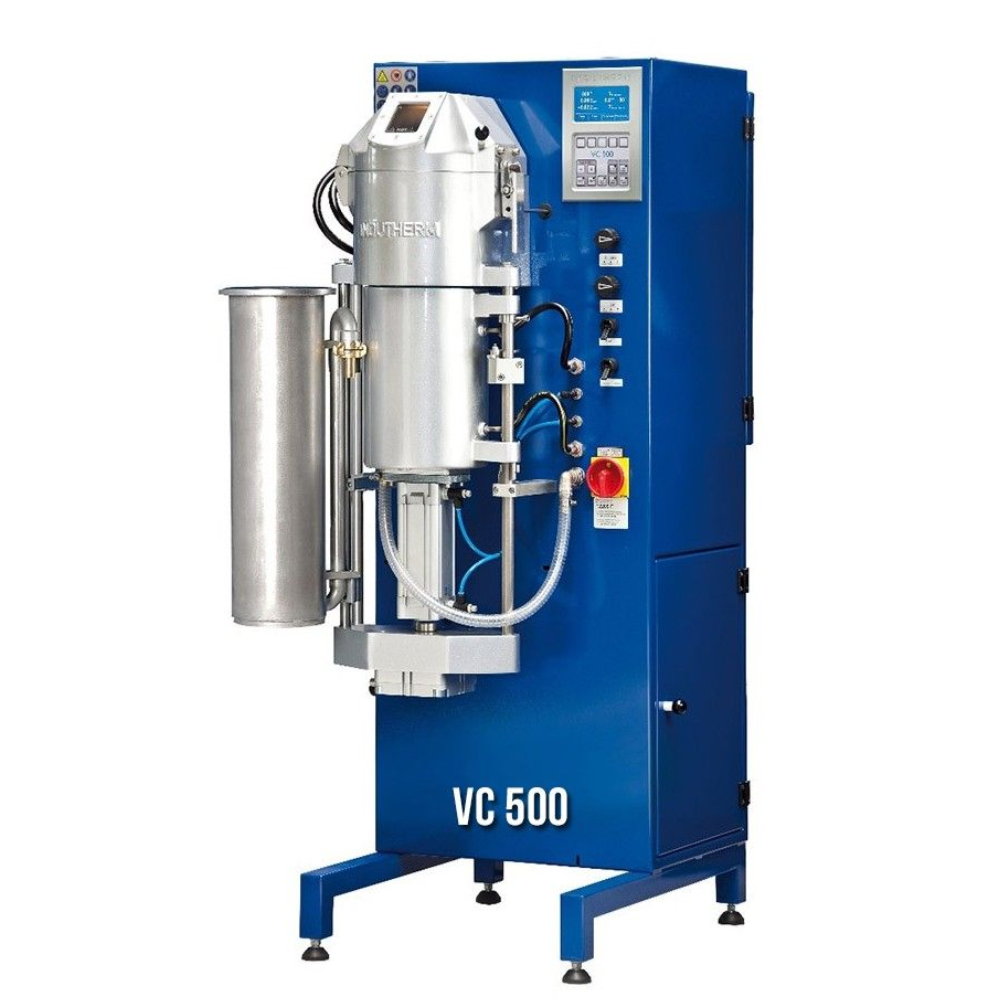

Indutherm VC 500 Series: Precision Vacuum Casting
The Indutherm VC 500 series is a versatile range of vacuum pressure casting machines designed for everything from boutique studios to high-capacity industrial manufacturers. Available in semi-automatic and fully automatic configurations, these systems leverage advanced thermodynamics and pressure management to deliver perfect casting results.
Production Efficiency & Throughput
- Overlapping Casting: Separate locking mechanisms for the melting and cuvette chambers allow you to melt the next batch while the previous cuvette is still under vacuum, significantly increasing daily output.
- Automatic Handling: Systems feature an automatic cuvette lift that docks and raises the flask, allowing the use of cost-effective cuvettes without flanges.
- Digital Control: Store up to 100 casting programs. Pre-set parameters for industry-standard alloys (like Legor, Pandor, and Heraeus) ensure success from the very first flask.
Pressure & Atmosphere Management
Controlling the environment is critical to preventing defects. The VC 500 series manages pressure with precision:
- Turbo Pressure PLUS: Achieves a rapid pressure build-up during the pour, essential for small, delicate objects or jewelry with embedded stones.
- HSC (High Speed Casting): Improves surface quality on large, smooth areas and allows for casting at lower temperatures to protect colored gemstones.
- Turbulence Reduction Software (TRS): Ensures a consistent metal flow that prevents the plaster mold from breaking and entering the melt.
Metallurgical Excellence via Vibration
The integrated Indutherm Vibration System physically shakes the molten metal at specific frequencies during solidification to improve the internal structure:
| Feature | Direct Benefit |
|---|---|
| 50% Smaller Grain Size | Higher material density and improved elastic properties. |
| Reduced Porosity | Significantly fewer "hot cracks" and rejected parts. |
| Dual Temp Control | Redundant sensors in the crucible wall and center for ±1° accuracy. |
| Oxidation Reduction | Minimizes surface scaling as the cuvette cools post-cast. |
Ready for the Future
Every VC 500 system is equipped with modern interface management for remote maintenance and service, ensuring your equipment is ready for the networking standards of modern "Smart Factories."
Standard models offer 20 programs, while V-versions include 100 programs and the integrated vibration system for premium casting results.
| Specifications | |
|---|---|
| Brand | Indutherm |
| Country of Origin | Germany |
| Model | VC 500 |
| Power | 10 kW 3 x 400 V / 3 x 208 V |
| Temperature Max | 1600°C |
| Crucible Volume | 245 ccm = 3.6 kg Au 18 ct* |
| Training | Remote Technical Training & After Sales Support Included |
| Temperature Program Control | 20 |
| For Use with Flasks | 130 mm / 240 mm h |
