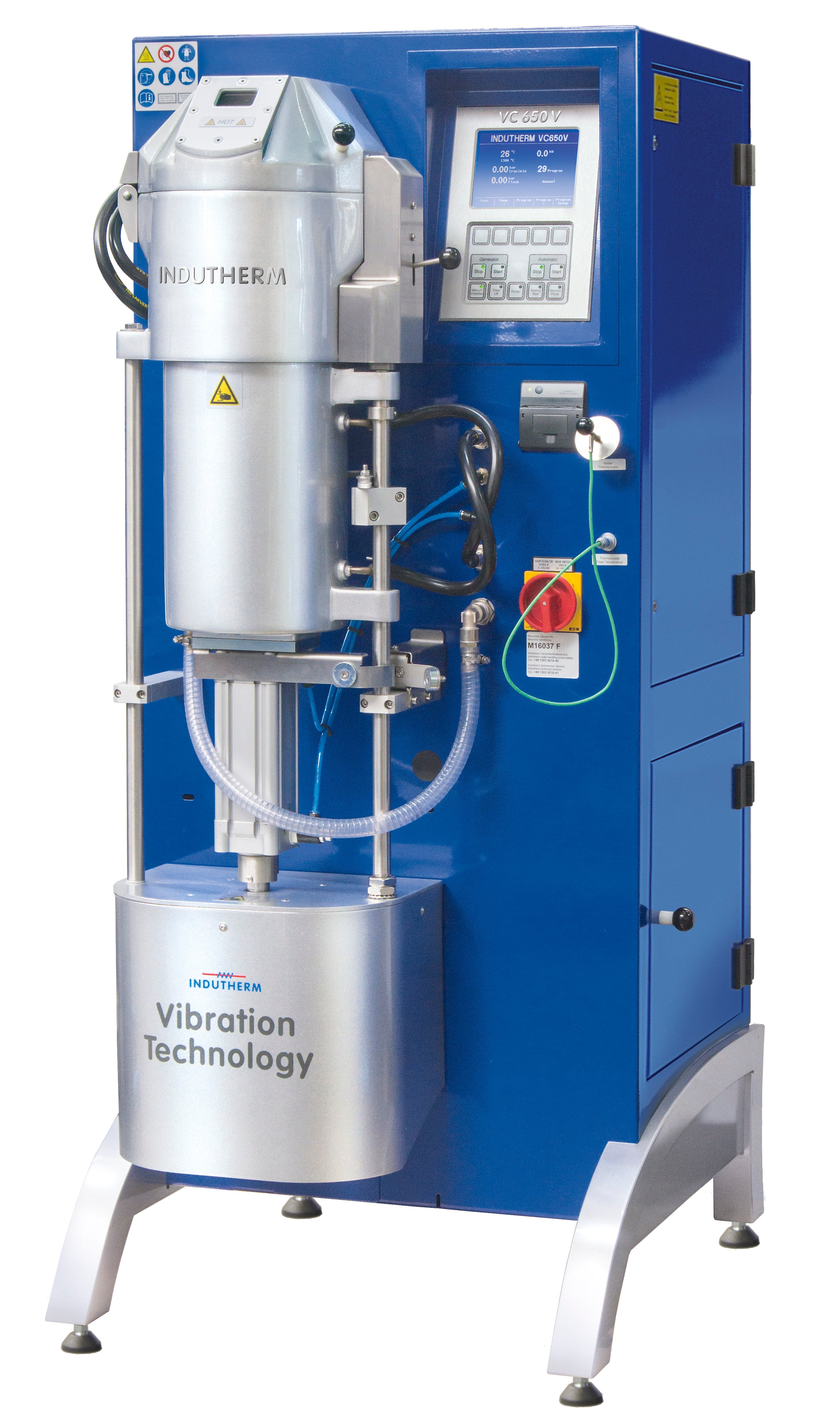

A top-tier fully automatic vacuum casting machine for high-precision jewelry production.
Related Products
| Model | Max Temp. | Max Power / Electrical Connection | Crucible Volume | Flask Size (ø x H) | Vibration Technology |
|---|---|---|---|---|---|
| VC 400 | 1400°C | 3.5 kW 230 V or 4.5 kW 3 x 400 V | 170 ccm = 2.5 kg Au 18 ct | 130 x 240 mm | - |
| VC 450 | 1400°C | 4.5 kW 3 x 220 V | 170 ccm = 2.5 kg Au 18 ct* | 130 x 240 mm | - |
| VC 460 V | 1400°C | 4.5 kW 3 x 220 V | 170 ccm = 2.5 kg Au 18 ct / 1.5 kg Cu* | 130 x 240 mm Optional: 160 x 400 mm |
Standard |
| VC 480 V | 1600°C | 8 kW 3 x 400 V | 170 ccm = 2.5 kg Au 18 ct* Optional: 245 ccm = 3.6 kg Au 18 ct* |
130 x 240 mm Optional: 160 x 400 mm |
Standard |
| VC 490 V | 1400°C | 8 kW 3 x 400 V | 170 ccm = up to 2.5 kg 18k Au / 1.5 kg Cu Optional: 245 ccm = up to 3.6 kg 18k Au |
130 x 240 mm | Standard |
| VC 500 | 1600°C | 10 kW 3 x 400 V / 3 x 208 V | 245 ccm = 3.6 kg Au 18 ct* | 130 x 240 mm | - |
| VC 650 V | 1700°C | 12 kW 3 x 400 V | 245 ccm = 3.6 kg Au 18 ct* | 160 x 400 mm | Standard |
| VC 680 V | 1700°C | 20 kW 3 x 400 V | 1.5 l = 4 kg Al / 12 kg Cu / 12 kg steel* | 250 x 500 mm | Standard |
| VC 1000 | 1500°C | 25 kW / 3 x 400 V / 40 A, 50 Hz or 60 Hz | 1500 ccm = 15 kg Ag, 4 kg Al | 250 x 500 mm | Available in V-version |
| VC 25000 | 1850°C | 60 kW (3 x 400 V) | 25 l = 65 kg Al / 200 kg Cu* | 600 x 800 mm | - |
Indutherm VC Series: High-Performance Vacuum Casting
The Indutherm VC Series represents a new generation of high-performance vacuum casting systems designed for maximum efficiency, precision, and reliability. Engineered for jewelry manufacturers, casters, and industrial users, these systems combine advanced temperature control, automated pressure management, and intelligent process software.
From delicate filigree pieces to high-volume production, the VC Series ensures consistent casting results, minimized metal loss, and shorter cycle times—all while reducing operating costs and extending the service life of consumables.
Key Features & Advantages
- Overlapping Casting & Chamber Handling: Features separate locking systems for the melting and cuvette chambers. This allows the next batch to melt while the previous cuvette remains under vacuum, significantly reducing cycle times.
- Vibration Technology: Improves metal flow and mold filling. This results in higher casting density and reduces grain size by up to 50%, virtually eliminating porosity and hot cracks.
- Advanced Program Control: Includes a full-text LCD display with up to 100 programmable casting sequences, ensuring reliable production from the very first cuvette without expensive trial casts.

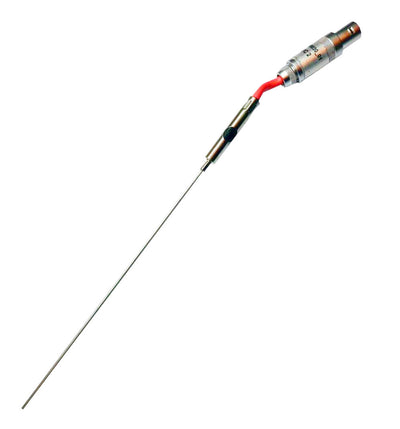

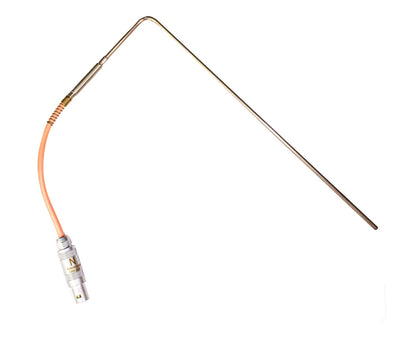

- Dual Temperature Control: Monitors both the crucible wall and the crucible center for strict thermal accuracy.
- Vacuum & Overpressure Control: Utilizes TurboPressure PLUS for rapid activation of overpressure, ensuring perfect mold packing for fine and delicate pieces.
Performance Benefits
| Feature | Benefit |
|---|---|
| Overlapping Casting | Significant reduction in cycle time and higher daily output. |
| Vibration Tech | Improved metal flow, higher density, and easier finishing. |
| HSC (High Speed Casting) | Superior mold filling for small items and smooth surfaces. |
| Automatic Lift | Allows the use of cost-effective cuvettes without flanges. |
| Specifications | |
|---|---|
| Brand | Indutherm |
| Country of Origin | Germany |
| Model | VC 650 V |
| Power | 12 kW (3 x 400 V) |
| Temperature Max | 1850° C |
| Crucible Volume | 245 ccm = 3.6 kg Au 18 ct / 2 kg Cu* |
| Vibration Technology | Standard equipment Sweep Mode |
| Programs | 100 |
