The Indutherm MC Casting Machines are engineered to melt and cast brass, gold, silver, platinum, palladium, and stainless steel under vacuum with precise temperature control up to 2000°C. Includes investment mixer, metal melter and casting supplies.

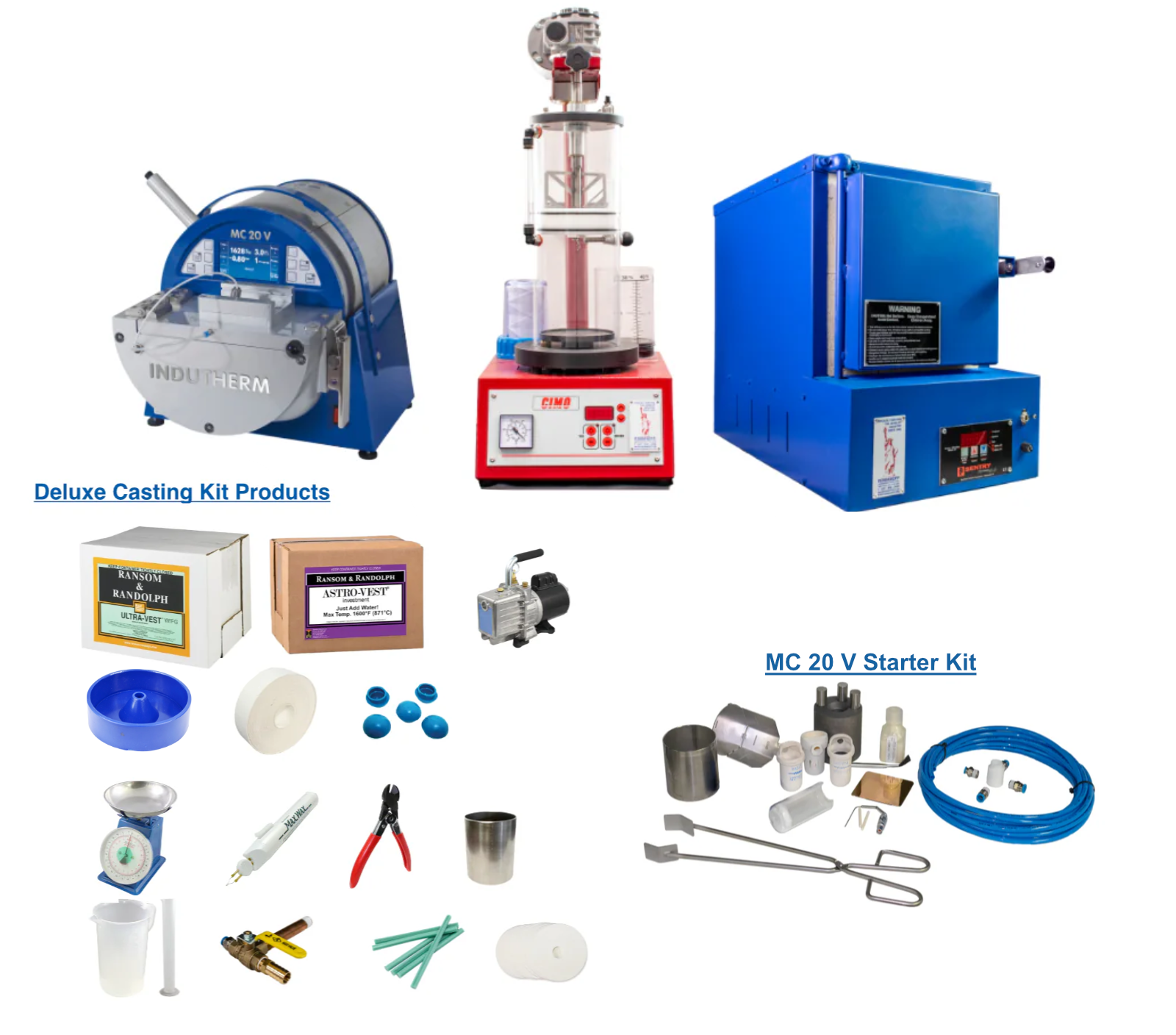

Starter Kit
Product Brochure
| Model | Power | Max Temp | Flask Size (Ø x H) | Compatible Metals | Replacement Crucible |
|---|---|---|---|---|---|
| MC 16 | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm |
Gold (18 kt): 100g Steel: 110g Platinum: 200g |
78-2003 - Platinum 78-2004 - Gold/Silver |
| MC 20 V | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm |
Gold (18 kt): 100g Steel: 110g Platinum: 200g |
78-2003 - Platinum 78-2004 - Gold/Silver |
| MC 60 V | 3.5 kW | 1300°C | Up to 80/100 x 120 mm |
Gold: 450g Silver: 300g |
78-2504 - Gold/Silver |
| MC 100 V | 8 kW | 2000°C | Up to 80/100 x 120 mm |
Gold: 450g Steel: 250g Platinum: 600g |
78-4503-CS - Small Platinum 78-4503 - Large Platinum 78-2504 - Gold/Silver |
| MTC 100 V | 8 kW | 2100°C | Up to 100 x 150 mm |
Gold: 450g Steel: 250g Platinum: 600g |
78-4503-CS - Small Platinum 78-4503 - Large Platinum 78-2504 - Gold/Silver |
High-Quality Machines, High-Quality Results
Indutherm’s advanced vibration technology promotes fast, even metal flow for dense castings, excellent mold fill, and outstanding overall quality.
For gold and silver applications, a thermocouple is placed directly in the melt to deliver precise temperature readings. By eliminating guesswork and reducing overheating, it helps minimize shrinkage porosity and improve casting consistency.
With up to 99 stored programs, operators can quickly recall proven settings for reliable, repeatable results.
Compact Size for Compact Projects
Measuring under two feet in all dimensions and weighing just 60 lbs. this casting machine is perfect for tight spaces. It serves as an economical option for small to medium projects, providing an excellent solution for studios and goldsmith's workshops with limited space.
Easy, Fast, and Efficient
Indutherm MC 20 V allows for casting cycles up to 4 minutes. Equipped with a high-quality LCD display for easy programming, this machine streamlines your workflow.
The 3.5 kW induction generator quickly reaches melting temperatures. Because of induction technology you can create alloys with ease.
For higher-temperature applications, the optical pyrometer accurately reads the surface temperature of the molten metal when the thermocouple can no longer be used, giving you precise control up to X degrees.
Versatile Uses
For gold and silver applications, the thermocouple sits directly in the melt to deliver precise temperature readings. By preventing overheating, it significantly reduces shrinkage porosity. Optional pyrometer available for platinum casting.
Vibration Technology
Using vibration during the casting process ensures better form filling, creating casts with greater, more consistent densities, higher elasticity, and greatly reduced porosity.
What's Included?
MC 20 V Tech Specs
Brand: Indutherm
Country of Origin: Germany
Model: MC 20 V
Power: 3.5 kW
Electrical Requirements: 230 V, single-phase, 16 A, 50/60 Hz
Maximum Temperature: 2000°C (3632°F)

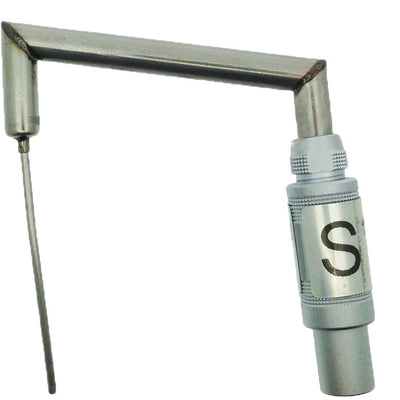

Thermocouple Options: Type N standard up to 1300°C, optional Type S up to 1600°C
Compatible Metals / Casting Capacity: Gold (18 kt): 100g, Steel: 110g, Platinum: 200g
Flask Size (Ø x H): 30 / 50 / 65 / 80 x 80 mm
Replacement Crucible: 78-2003 - Platinum, 78-2004 - Gold/Silver
Control: LCD display with full text readout
Vacuum / Overpressure: Automatic system, -1 to +3 bar
Machine Dimensions (L x W x H): 16 x 16 x 17.5 in (406 x 406 x 444.5 mm)
Uncrated Weight: 60 lb (27 kg)
Crated Dimensions (L x W x H): 36 x 36 x 25 in (914 x 914 x 635 mm)
Crated Weight: 100 lb (46 kg)
Included Training: Remote technical training and after-sales support included
Application: Small jewelry pieces and light production casting under vacuum pressure
Form Factor: Tabletop unit for studio or bench use
