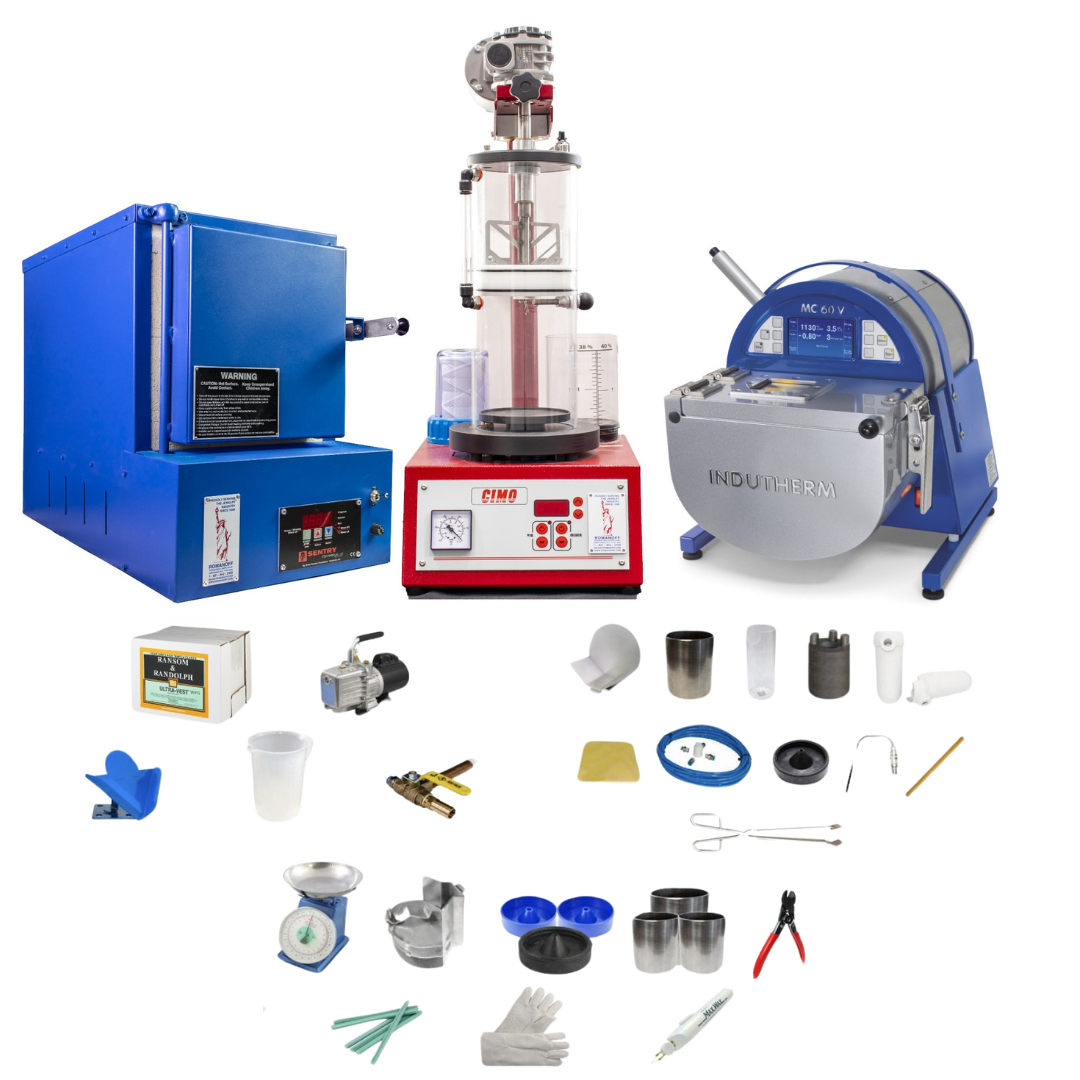

Comprehensive accessory bundle for the MC 60 V machine. Kit includes metal melter, investment mixer and casting supplies.
Product Manual
Starter Kit
Product Brochure
| Model | Power | Max Temp | Flask Size (Ø x H) | Compatible Metals | Replacement Crucible |
|---|---|---|---|---|---|
| MC 16 | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm |
Gold (18 kt): 100g Steel: 110g Platinum: 200g |
78-2003 - Platinum 78-2004 - Gold/Silver |
| MC 20 V | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm |
Gold (18 kt): 100g Steel: 110g Platinum: 200g |
78-2003 - Platinum 78-2004 - Gold/Silver |
| MC 60 V | 3.5 kW | 1300°C | Up to 80/100 x 120 mm |
Gold: 450g Silver: 300g |
78-2504 - Gold/Silver |
| MC 100 V | 8 kW | 2000°C | Up to 80/100 x 120 mm |
Gold: 450g Steel: 250g Platinum: 600g |
78-4503-CS - Small Platinum 78-4503 - Large Platinum 78-2504 - Gold/Silver |
| MTC 100 V | 8 kW | 2100°C | Up to 100 x 150 mm |
Gold: 450g Steel: 250g Platinum: 600g |
78-4503-CS - Small Platinum 78-4503 - Large Platinum 78-2504 - Gold/Silver |
MC 60 V: Compact, High-Performance Vacuum Casting
The MC 60 V is a compact yet powerful casting machine designed for seamless metal melting and casting. Equipped with a full-text LCD display, it allows for fine adjustments and easy serial programming, making it an ideal choice for both boutique studios and industrial production.
Key Features & Benefits
- User-Friendly: Quick setup and simple operation with minimal training required.
- Fast & Efficient: Integrated 3.5 kW induction generator ensures rapid melting cycles.
- Superior Casting Quality: Vacuum melting minimizes oxidation, while advanced vibration technology enhances mold filling for intricate details.
- Cost-Effective: Low running costs featuring affordable consumables and flange-free flasks.
- Compact Footprint: Powerful performance in a space-saving design (400x400x470 mm).
Brand: Indutherm
Country of Origin: Germany
Model: MC 60 V
Power: 3.5 kW
Electrical Requirements: 230 V, single-phase, 16 A, 50/60 Hz
Maximum Temperature: 1300°C (2372°F)
Thermocouple Options: Type N standard up to 1300°C
Compatible Metals / Casting Capacity: Gold (18 kt): 450g, Silver: 300g
Flask Size (Ø x H): Up to 80 / 100 x 120 mm
Replacement Crucible: 78-2504 - Gold/Silver
Control: LCD display with full text readout
Vacuum / Overpressure: Automatic system, -1 to +2 bar
Machine Dimensions (L x W x H): 15 x 17 x 17 in (400 x 450 x 450 mm)
Uncrated Weight: 70 lb (32 kg)
Crated Dimensions (L x W x H): 32 x 47 x 32 in (812 x 1193 x 812 mm)
Crated Weight: 130 lb (59 kg)
Included Training: Remote technical training and after-sales support included
Application: Small jewelry pieces and light production casting under vacuum pressure
Form Factor: Tabletop unit for studio or bench use
